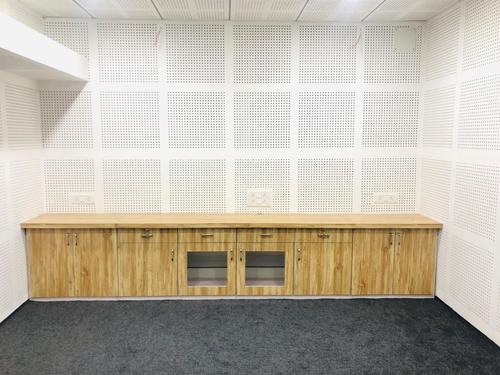

Portable Acoustic Enclosure
130000 INR/Square Feet
Product Details:
- Dimension (L*W*H) Typical 3 m x 2 m x 2.5 m (customizable) Meter (m)
- Height 2.5 m 3 m Meter (m)
- Thickness Panel thickness 50 mm/75 mm/100 mm Millimeter (mm)
- Product Type Industrial Acoustic Enclosure
- Material Other
- Roof Material Insulated MS sheet with acoustic panel
- Wall Soundproof composite wall panels
- Click to View more
X
Portable Acoustic Enclosure Price And Quantity
- 1 Square Feet
- 130000 INR/Square Feet
- High-density rock wool/mineral wool
- Internal LED lighting provision
- Forklift pockets and lifting hooks provided
- Weather and soundproof louvers
- Powder coated, corrosion resistant
- -10C to +55C
- Neoprene gaskets at joints for air-tightness
- Removable panels for equipment maintenance
- 25-35 dB(A) at 1 meter distance
- Fire retardant panels as per IS: 14232
- Zinc plated high tensile bolts
- Available for various generator and compressor models
- Acoustically treated air inlet and outlet louvers with fans
Portable Acoustic Enclosure Product Specifications
- Standard as per IS code, approx. 80 kg/m
- Industrial Acoustic Enclosure
- Soundproof composite wall panels
- Other
- Typical 3 m x 2 m x 2.5 m (customizable) Meter (m)
- Up to 1000 kg/m Kilograms (kg)
- Other
- Other
- Chequered MS plate with anti-vibration pads
- MS (Mild Steel) structural frame
- Panel thickness 50 mm/75 mm/100 mm Millimeter (mm)
- Other
- Industrial grey (customizable)
- 50 mm to 100 mm Millimeter (mm)
- Insulated MS sheet with acoustic panel
- 120 km/h
- Up to 150 kg/m
- Other
- 2.5 m 3 m Meter (m)
- High-density rock wool/mineral wool
- Internal LED lighting provision
- Forklift pockets and lifting hooks provided
- Weather and soundproof louvers
- Powder coated, corrosion resistant
- -10C to +55C
- Neoprene gaskets at joints for air-tightness
- Removable panels for equipment maintenance
- 25-35 dB(A) at 1 meter distance
- Fire retardant panels as per IS: 14232
- Zinc plated high tensile bolts
- Available for various generator and compressor models
- Acoustically treated air inlet and outlet louvers with fans
Portable Acoustic Enclosure Trade Information
- Cheque
- 10 Square Feet Per Week
- 1 Week
- All India
Product Description
Acoustic Enclosures have been made to cut down the noise levels on industrial and commercial machines. These fulfill the specification of noise reduction requirements and also reduce the noise pollution. Supplied high-quality enclosures are functional as the acoustic chambers, sound isolation enclosures, acoustic barriers and screens, which can minimize the noise. It is made from acoustic materials and boast of safe and effective use in a variety of applications.
Key Features and Build Quality
Our acoustic enclosures showcase a modular design with MS structural frames, chequered MS floors, and composite soundproof wall panels. Each unit is powder-coated for corrosion resistance, includes weather-resistant and soundproof louvers, and is insulated using high-density rock/mineral wool. Portability is enhanced with forklift pockets and lifting hooks, while service-friendly removable panels allow effortless equipment maintenance.
Advanced Noise Control and Safety
Designed to reduce noise by 25-35 dB(A), the enclosures feature acoustically treated air inlets and outlets, along with fire retardant panels as per IS: 14232. Neoprene gaskets ensure airtight seals, internal LED lighting provides illumination, and the build complies with CPCB/MOEF regulations, guaranteeing operational safety and legal compliance.
Applications and Customization
Our enclosures are suitable for a wide range of noisy equipment, including generators and compressors, and are customizable in dimension, color, and window styles. Capable of withstanding wind speeds up to 120 km/h and built for Zone IV earthquake compliance, these units are ideal for industrial and commercial installations across India.
FAQs of Acoustic Enclosure:
Q: How does the acoustic enclosure achieve noise reduction of 25-35 dB(A)?
A: The enclosure utilizes a combination of high-density rock or mineral wool insulation, composite panel construction, and acoustically engineered louvers to attenuate sound, reducing noise levels by 25-35 dB(A) at a 1-meter distance from the source.Q: What makes this enclosure suitable for use with diverse machinery and in challenging environments?
A: Featuring corrosion-resistant powder-coating, fire retardant panels, sealed joints with neoprene gaskets, and a robust MS structural frame, the enclosure is designed for longevity and performance. Customization is available to fit generator and compressor models, and it withstands wide temperature ranges and high winds.Q: When should service or maintenance be performed on equipment housed within the enclosure?
A: Service intervals depend on the housed equipments maintenance schedule. Removable panels, forklift pockets, and easy-lift hooks allow quick, safe access whenever routine maintenance or emergency repair is needed, minimizing downtime.Q: Where can the acoustic enclosure be installed, and does installation require special expertise?
A: The modular design is intended for assembly at factories, plants, construction sites, and other industrial locations. While simple in principle, proper installation by experienced technicians is recommended to ensure optimal noise reduction and safety conformity.Q: What process is followed for on-site assembly and customization?
A: After delivery, the enclosure is assembled on-site using zinc-plated, high-tensile bolts. Dimensions, window type, and other features are tailored per project requirements, ensuring compliance with project needs and standards. All components fit together modularly for efficient setup.Q: How is ventilation managed without compromising soundproofing?
A: Ventilation is addressed using acoustically treated inlet and outlet louvers, which are paired with fans. These components permit adequate airflow, prevent overheating, and maintain effective sound attenuation, so noise reduction remains uncompromised during operation.Q: What are the main benefits of using this acoustic enclosure for machinery?
A: The enclosure substantially lowers environmental noise, protects staff and communities, meets regulatory noise standards, and enhances equipment longevity through weather and fire-resistant construction. Portability and access features add operational flexibility.Tell us about your requirement
